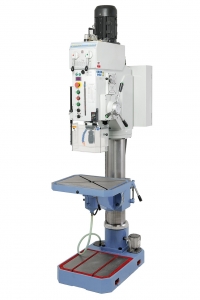

GB 50 TH (Code: 01-1300XL)

Hits:

1854

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	50 mm
Drilling capacity in cast iron	60 mm
Thread cutting max.	M42
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 4
Spindle speeds / Steps	52 - 1400 rpm / 12
Feed range	0,1 / 0,2 / 0,3 / 0,4 mm/rev
Distance spindle to column	360 mm
Distance spindle to table max.	595 mm
Distance spindle to base	1190 mm
Spindle stroke	240 mm
Column diameter	180 mm
Table size / T-slot size	580 x 460 mm / 14 mm
Motor power	3,0 kW
Machine dimensions (W x D x H)	750 x 950 x 2380 mm
Weight approx.	590 kg

FEATURES

• Motorized table stroke reduces non-production times
• Thread cutting device and automatic tool release device as standard
• Solid, vibration-free construction ensures accurate results
• Powerful drive motor designed for longer use
• Digital displays for speed and drill depth
• Solid grey cast iron table with tilt- and rotatable support
• Wide range of standard equipment increases efficiency
• Hardened and polished gear wheels ensure smooth running
• 4 automatic spindle feeds via electromagnetic clutch
