Distance between centers
550 mm
Center height
125 mm
Swing over bed
250 mm
Bed width
135 mm
Spindle bore
26 mm
Taper at spindle bore
MT 4
Speed range
(6) 125 - 2000 rpm
Longitudinal feed
(6) 0,06 - 0,32 mm/rev
(4) 0,03 - 0,075 mm/r
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"

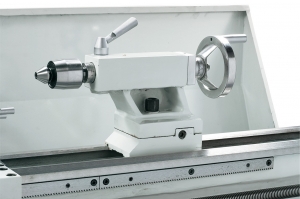

Travel of tailstock sleeve
70 mm
Taper of tailstock sleeve
MT 2
Motor power output S1 100%
0,75 kW / 230 V
Motor power input S6 40%
1,0 kW / 230 V
Machine dimensions (W x D x H)*
1210 x 610 x 450 mm
Weight approx.
120 kg
* without stand
