TB 20 T (Code: 01-1036)

Hits: 5856
New

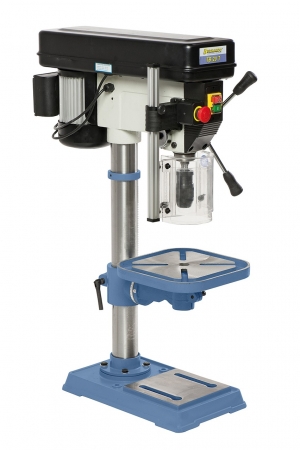

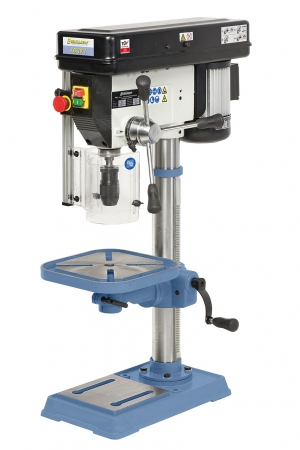

TB 20 T
zoom Zoom image
TB 20 T TB 20 T TB 20 T TB 20 T TB 20 T

TECHNICAL SPECIFICATIONS

Drilling capacity max.

20 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 2

Spindle speed

(16) 180 - 2770 rpm

Distance spindle to column

180 mm

Drilling table tiltable

-45° to 45°

Distance spindle to table max.

415 mm

Distance spindle to base

605 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

290 x 290 mm / 16 mm

Work surface base

205 x 205 mm

Motor power output S1 100%

0,55 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)

380 x 620 x 1000 mm

Weight approx.

54 kg

FEATURES

  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), height adjustment via gear rack

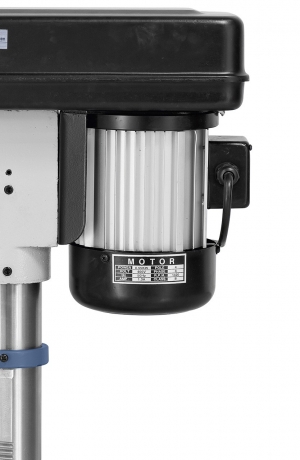

  • Powerful, high-torque aluminium motor according to IP 54 standard
  • High grade keyless drill chuck comes standard

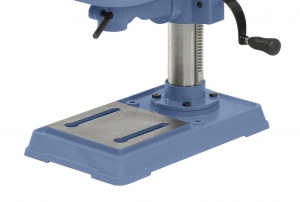

  • Treated machine base allows clamping of oversize workpieces
  • Features T-slots on polished base
  • Ergonomical handles allow for high work comfort



Standard accessories:

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16

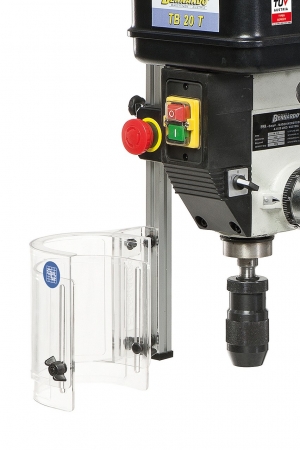

  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools
