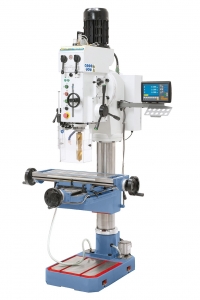

GB 50 SK (Code: 01-1306XL)

Hits:

1848

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	50 mm
Drilling capacity in cast iron	60 mm
Thread cutting max.	M42
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 4
Spindle speeds / steps	52 - 2050 rpm / 12
Feed range	0,1 / 0,2 / 0,3 / 0,4 mm/rev.
Table size / T-slot size	800 x 280 mm / 14 mm
Travel (x / y)	440 / 285 mm
Distance spindle to column	370 mm
Distance spindle to table	510 mm
Distance spindle to base	1270 mm
Spindle stroke	240 mm
Column diameter	150 mm
Motor power	2,2 / 2,8 kW
Machine dimension (W x D x H)	1240 x 1200 x 2370 mm
Weight approx.	800 kg

Comes complete with automatic spindle feed and thread cutting device
Protective cover in accordance to CE standards, adjustable to various drill bit sizes
Many possible applications, such as groove milling, face milling, reboring etc.

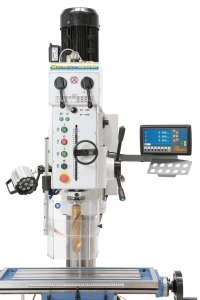

Complete with digital readout in 2 axis (x and y) raises productivity
High concentricity ≤ 0,02 mm measured at spindle
Precisely finished base plate features T-slot and integrated coolant pump
Automatic tool release device ensures fast tool change
Includes 4 automatic spindle fees, adjustable electromagnetically
