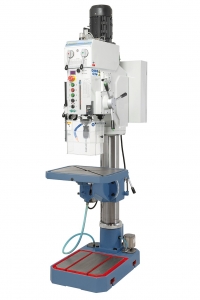

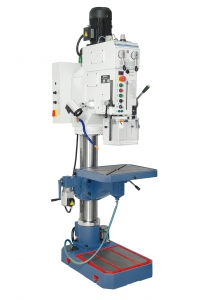

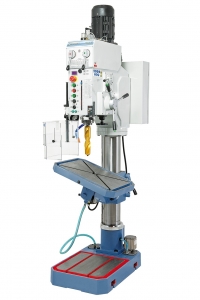

GB 40 TH (Code: 01-1295XL)

Hits:

2466

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	40 mm
Drilling capacity in cast iron	45 mm
Thread cutting max.	M32
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 4
Spindle speeds/ steps	52 - 1400 rpm / 12
Feed area	0,1 / 0,2 / 0,3 / 0,4 mm/rev
Distance spindle to column	360 mm
Distance spindle to table max.	595 mm
Distance spindle to base	1185 mm
Spindle stroke	200 mm
Column diameter	160 mm
Table size / T-slot size	580 x 460 mm / 14 mm
Motor power	2,2 kW
Machine dimensions (W x D x H)	700 x 950 x 2340 mm
Weight approx.	560 kg

FEATURES

• Includes motorized stroke and digital displays for drill depth and speed
• Hand-polished, grey cast -iron table, tiltable from -45° to +45°
• T-slots in base allow mounting of oversized workpieces
• Automatic tool release device allows quick change of drilling tools
• Electromechanic feed, adjustable from 0,1 to 0,4 mm/rev
• Gear shift located on front of machine allows quick speed change
• Adjustable drill depth stop includes scale for easy readout
• Protective cover with limit switch for increased security
• Excellent illumantion at working by LED machine light
