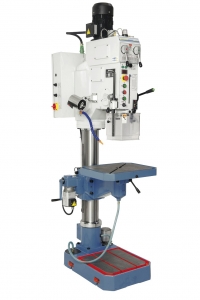

GB 35 TH (Code: 01-1285XL)

Hits:

2519

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	35 mm
Drilling capacity in cast iron	40 mm
Thread cutting max.	M24
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 4
Spindle speeds	(12) 75 - 2020 rpm
Feed area	0,12 / 0,24 / 0,40 mm/rev
Distance spindle to column	340 mm
Distance spindle to table max.	605 mm
Distance spindle to base	1195 mm
Spindle stroke	190 mm
Column diameter	140 mm
Table size / T-slot size	540 x 440 mm / 14 mm
Working surface of base	400 x 410 mm
Motor power output S1 100%	1,5 kW
Motor power input S6 40%	2,2 kW
Machine dimensions (W x D x H)	660 x 900 x 2230 mm
Weight approx.	490 kg

FEATURES

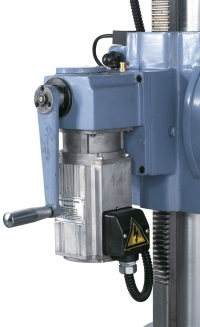

• Serially equipped with motorized table height adjustment
• Automatic tool release device and thread cutting device come standard
• Lever on gear head allows quick and easy speed change
• Digital readout of speed and drill depth come standard
• Treated machine base (400 x 410 mm) with integrated coolant pump
• Electromagnetic spindle feed for precise work
• Hardened, polished gear wheels for smooth run
• Quality bearings guarantee concentricity
• Solid, hand-polished, grey cast iron table with tilt- and turnable support
