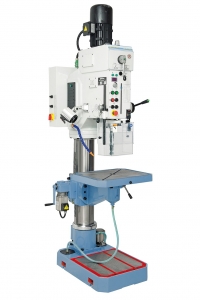

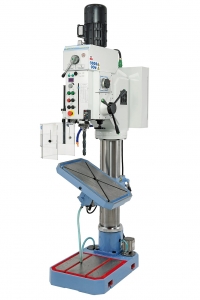

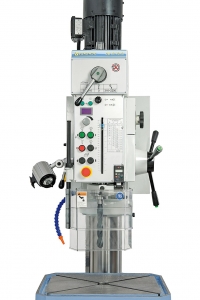

GB 50 VARIO (Code: 01-1303XL)

Hits: 268

TECHNICAL SPECIFICATIONS

Drilling capacity in steel

50 mm

Drilling capacity in cast iron

60 mm

Thread cutting max.

M42

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds / 2 Steps

50 - 310 / 310 - 2200 rpm

Feed range

0,8 / 0,12 / 0,17 / 0,24 / 0,35 / 0,50 mm/rev

Distance spindle to column

360 mm

Distance spindle to table max.

575 mm

Distance spindle to base

1165 mm

Spindle stroke

200 mm

Column diameter

180 mm

Table size / T-Slot size

580 x 460 mm / 14 mm

Working surface of base

435 x 445 mm

Motor power

3,0 kW

Machine dimensions (W x D x H)

750 x 950 x 2380 mm

Weight approx.

575 kg

FEATURES

  • Stepless peed adjustment comes standard, easy readout on digital display
  • Motorized table height adjustment included
  • 6 automatic drill feeds are controlled by electromagnetic clutch
  • Solid, grey cast iron, surface treated drill table can be tilted form -45° to +45°
  • Polished base features T-slots for clamping of larger workpieces
  • Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
  • Automatic tools release device and tapping device as standard equipment
  • Smooth gear wheels, in oil bath, allow for a smooth run
  • Solid, polished steel column, heavy-duty design
