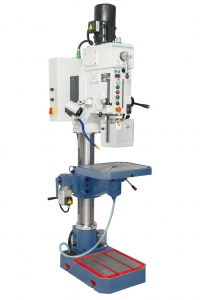

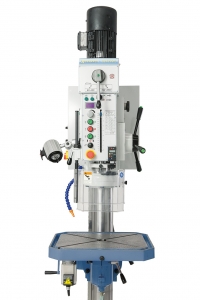

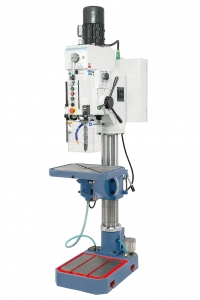

GB 40 VARIO (Code: 01-1302XL)

Hits:

1819

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	40 mm
Drilling capacity in cast iron	45 mm
Thread cutting max.	M32
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 4
Spindle speeds / 2 Steps	60 - 400 / 392 - 2600 rpm
Feed range	0,1 / 0,2 / 0,3 / 0,4 mm/rev
Distance spindle to column	340 mm
Distance spindle to table max.	610 mm
Distance spindle to base	1195 mm
Spindle stroke	190 mm
Column diameter	140 mm
Table size / T-Slot size	540 x 440 mm / 14 mm
Working surface of base	400 x 410 mm
Motor power	2,0 kW
Machine dimensions (W x D x H)	700 x 950 x 2340 mm
Weight approx.	495 kg

FEATURES

• Stepless peed adjustment, easy readout on digital display
• Motorized table stroke reduces downtime significantly
• Choose between 4 automatic spindle feeds, set by electromagnetic clutch
• Table turns around the column horizontally and tilts 45° to both sides
• Surface treated machine base (400 x 410 mm) with integrated coolant pump
• Guaranteed concetricity of ≤ 0,02 mm measured at spindle
• Hardened, polished gear wheels guarantee smooth operation
• Automatic tool release device allows quick tool change
• Powerful drive motor designed for longer use
