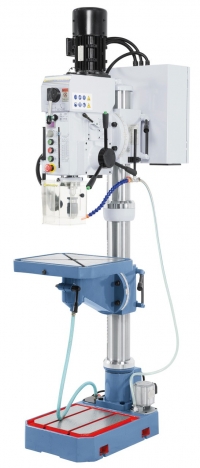

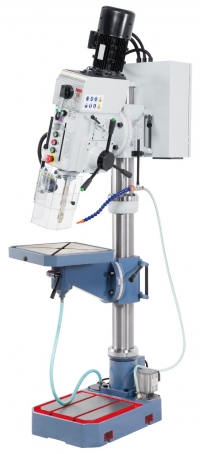

GB 35 STI VARIO (Code: 01-1276XL)

Hits: 274

TECHNICAL SPECIFICATIONS

Drilling capacity in steel

35 mm

Drilling capacity in cast iron

40 mm

Thread cutting max.

M24

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speed, 2 steps

65 - 460 rpm / 460 - 3250 rpm

Feed range

0,1 / 0,2 / 0,3 mm/rev.

Distance spindle to column

320 mm

Distance spindle to table max.

700 mm

Distance spindle to base

1260 mm

Spindle stroke

160 mm

Column diameter

120 mm

Table size / T-slot size

500 x 420 mm / 14 mm

Working surface of base

360 x 370 mm

Motor power output S1 100%

1,5 kW

Motor power input S6 40%

2,2 kW

Machine dimension (W x D x H)

550 x 940 x 2300 mm

Weight approx.

430 kg

FEATURES

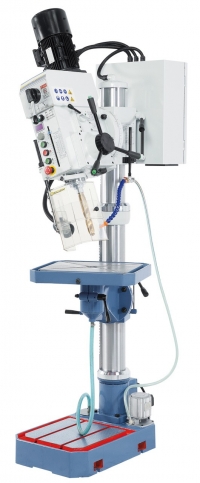

  • Tiltable drill head (-45° to +45°) allows for wide range of applications
  • Precisely finished base plate features T-slots and integrated coolant pump
  • High concentricity ≤0.02 mm measured at spindle
  • Automatic tool release device ensures fast tool change
  • Comes complete with energy efficient and powerful LED-machine lamp
  • Transmission gears in oil ensures smooth operation
  • Solid, polished steel column, designed for continuous operation
  • T-slots in machine base allow clamping of high workpieces
