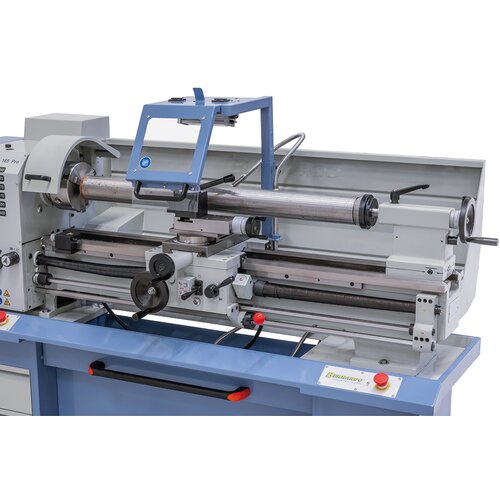

Gear-head gap bed lathe Master 165 Pro
Šifra: 03-1263XL0

Gear-head gap bed lathe Master 165 Pro *

Akcija

VPC 4.152,00 € bez PDV-a6.487,50 € 5.190,00 € s PDV-om

Zatražite ponudu 091 1776 108
Više strojeva i alata u jednom upitu — pogledaj upit

Karakteristike

  • Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
  • 38 mm spindle bore to machine large shaft diameters comes standard
  • Ideal for processing of steel, non-ferrous materials and plastics
  • Chip tray extracts to front, keeping space requirements to a minimum

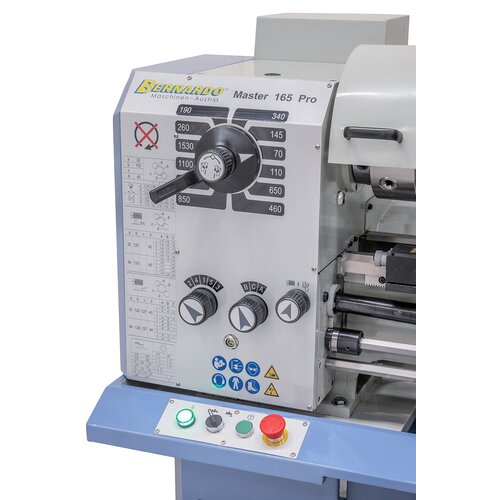

  • Clear arranged speed and feed control settings, smooth operation and accurate control
  • Electro-magnetic foot brake reduces downtime
  • State-of-the-art spindle bedding with high-quality, angular ball bearings Grey cast-iron machine bed, inductive hardened and polished
  • High spindle concentricity (≤ 0,015 mm)
  • Hardened and polished spindle runs in oil bath
  • Tailstock, spindle stock and all guides are adjustable
  • Tailstock can be adjusted ± 5 mm for taper turning

Tehnički podaci

Razmak između šiljaka830 mm
Visina šiljaka165 mm
Promjer tokarenja iznad kreveta330 mm
Promjer tokarenja iznad poprečnog suporta205 mm
Širina kreveta195 mm
Provrt vretena38 mm
Prihvat vrha vretenaDIN 55029, D1-4
Raspon broja okretaja(12) 70 - 2000 o/min
Uzdužni posmak(15) 0,05 - 0,5 mm/okr.
Poprečni posmak(15) 0,02 - 0,2 mm/okr.
Metrički navoj(18) 0,25 - 5,0 mm
Colni navoj(13) 6 - 96 navoja/1“
Diameter of tailstock sleeve32 mm
Hod pinole konjića90 mm
Konus pinole konjićaMK 3
Izlazna snaga motora S1 100%1,5 kW (400 V)
Ulazna snaga motora S6 40%2,2 kW (400 V)
Dimenzije stroja (Š x D x V)1750 x 720 x 1530 mm
Težina cca.430 kg

Sadržaj isporuke

  • 3-jaw chuck K11-160 mm / D4

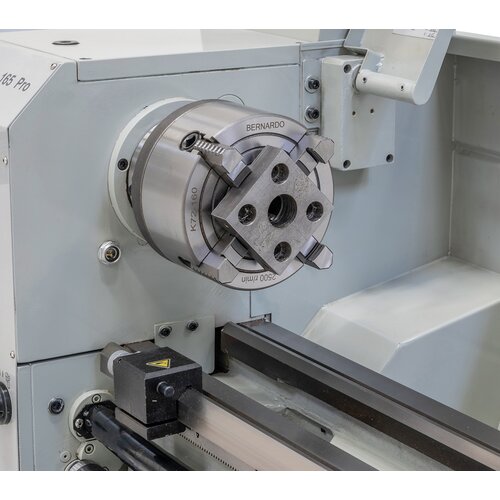

  • Independent chuck 160 mm / D4, nach DIN 55029

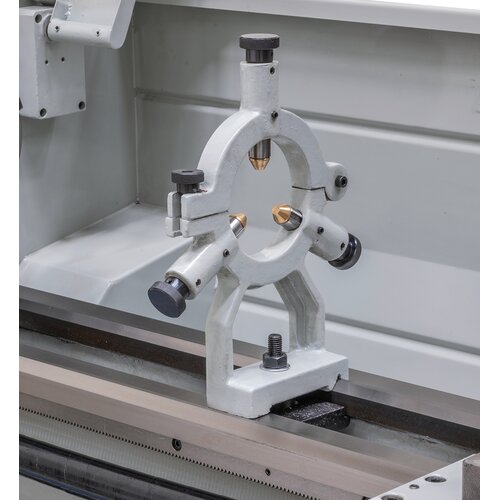

  • Steady rest - Passage up to 45 mm
  • Follow rest - Passage up to max. 40 mm
  • Uređaj za hlađenje
  • Izvlačna posuda za strugotinu
  • Face plate 240 mm

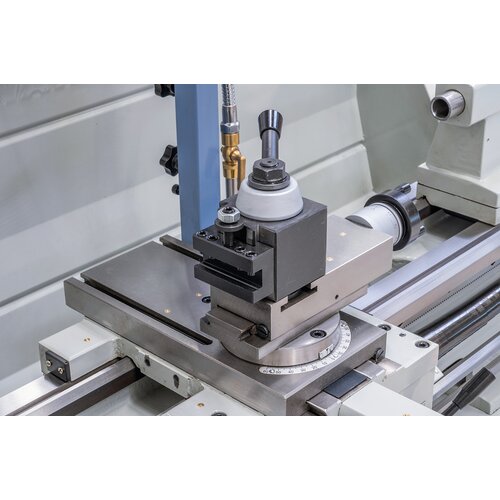

  • Quick change tool post and holder set with 4 inserts
  • Protective device at tool holder
  • Sigurnosna spojka
  • Mikrometarski uzdužni graničnik
  • Pokazivač navoja
  • LED rasvjeta stroja
  • Redukcijska čahura

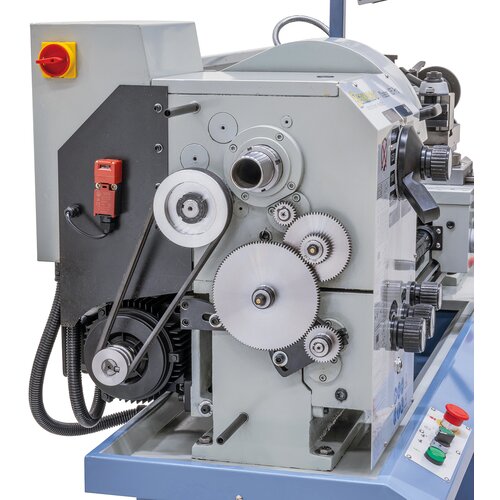

  • Change gears 2 dead centers
  • Nožna papučica s funkcijom kočenja prema CE
  • Stand with drawers
  • Alat
