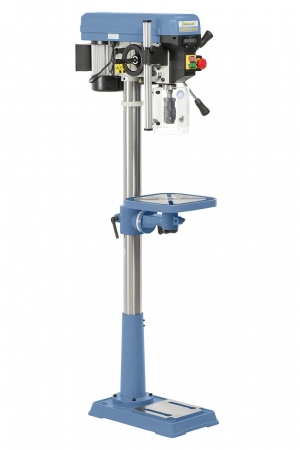

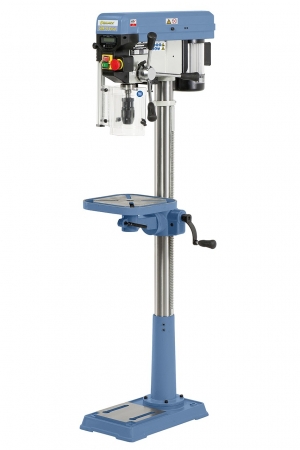

SBM 16 VARIO (Code: 01-1128)

Hits: 319

TECHNICAL SPECIFICATIONS

Drilling capacity in steel

16 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed, stepless

400 - 1950 rpm

Distance spindle to column

160 mm

Table tiltable

-45° to +45°

Distance spindle to table max.

690 mm

Distance spindle to base

1170 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

285 x 285 mm / 16 mm

Working surface of base

200 x 190 mm

Motor power output S1 100%

0,60 kW / 230 V

Motor power input S6 40%

0,85 kW / 230 V

Machine dimension (W x D x H)

420 x 600 x 1560 mm

Weight approx.

57 kg

FEATURES

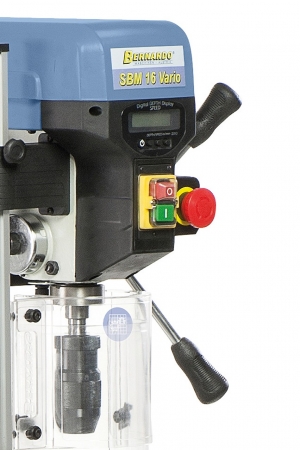

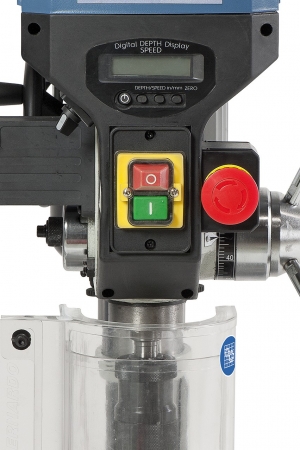

  • Digital display allows for easy readout of speed or spindle stroke
  • Grey cast iron pulleys ensure smooth operation
  • Quality ball bearings guarantee high concentricity

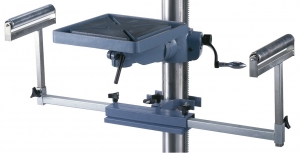

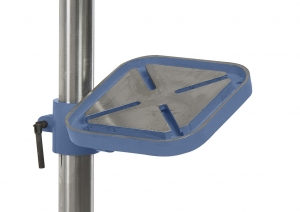

  • Oversize drill table features diagonal T-slots
  • Drill table tilts (±45°) height adjustment by gear rack

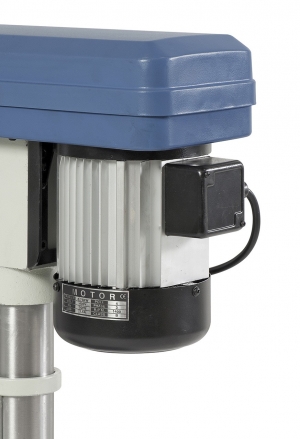

  • Powerful, high performance aluminium motor according to IP 54 standards

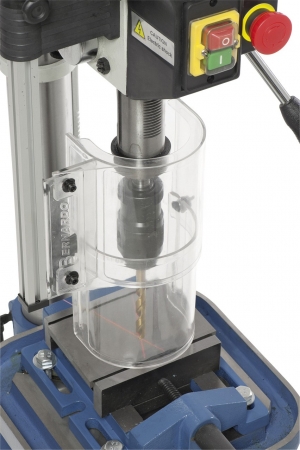

  • Precise keyless drill chuck as part of standard equipment
  • Comes complete with T-slots in polished base plate

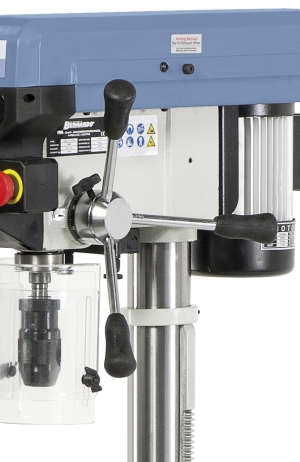

  • Ergonomic handles ensure high work comfort
