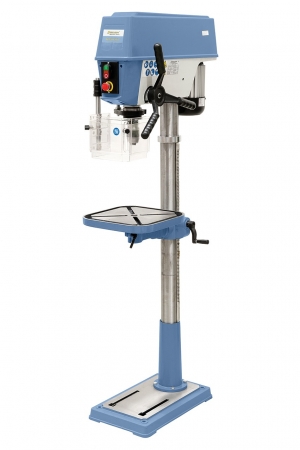

B 430 VARIO (Code: 01-1100)

Hits: 353

TECHNICAL SPECIFICATIONS

Drilling capacity max.

25 mm

Keyless drill chuck

3 - 16 mm / B 16

Morse taper

MT 3

Spindle speed, stepless

280 - 2600 rpm

Distance spindle to column

220 mm

Table rotatable

360°

Distance spindle to table max.

790 mm

Distance spindle to base

1250 mm

Spindle stroke

80 mm

Column diameter

80 mm

Table size / T-slot size

345 x 345 mm / 16 mm

Working surface of base

240 x 275 mm

Motor power output S1 100%

 0,75 kW (1,1 HP) / 400 V

Motor power input S6 40%

1,1 kW (1,5 HP) / 400 V

Machine dimension (W x D x H)

350 x 720 x 1710 mm

Weight approx.

100 kg

FEATURES

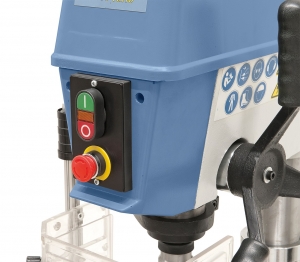

  • Safety switch with undervoltage release

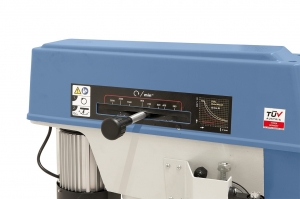

  • Stepless speed adjustment
  • Compact, solid construction with modern design
  • Aluminium-motor according to IP 54 - 400 V

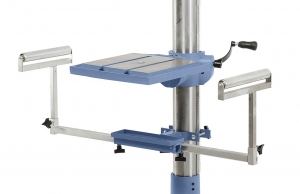

  • Table rotates 360°
  • Solid, polished steel column
  • Top quality at a reasonable price
  • Scale for drill depth
  • Cast iron table with cooling grooves
  • Spindle runs on high-quality ball bearings
  • Gear rack allows easy table height adjustment
