HBS 400 (Code: 11-4055)

Hits: 497

Technical specifications

Cutting width

380 mm

Cutting height

220 mm

Blade dimension

2950 x 16 x 0,52 - 4 TPI

Blade width

6 - 20 mm

Cutting speed

600 m/min

Table size

410 x 500

Table height

940 mm

Tilting table

0° to 45°

Dust extraction outlet

100 mm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,8 HP)

Voltage

230 V

Machine dimension (B x T x H)

760 x 880 x 1705 mm

Weight approx.

140 kg

Properties

  • Big dimensioned working table with grounded surface and T-slot

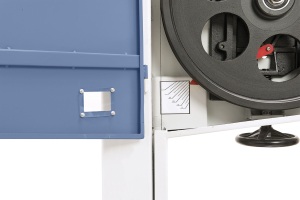

  • Massive cast iron fl ywheels for smooth run

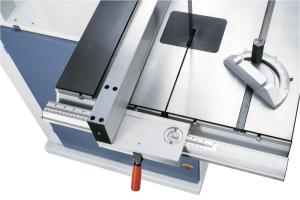

  • Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
  • Tiltable working table for mitre cuts from 0° to 45°
  • Upper and lower precision roller guiding for precise cuts
  • High quality V-belt for optimal power transmission
  • Including limit switch for automatic shut-down at opening of the upper blade covers

Standard accessories

  • Bandsaw blade
  • Rip fence with loupe
  • Mitre fence
  • Cast iron flywheels
  • 3-roller bandsaw blade guiding
  • Push stick
  • Tools
