HBS 230 (Code: 11-3999)

Hits: 510



Technical specifications

Cutting width

225 mm

Cutting height

95 mm

Blade dimension

1575 x 6,35 x 0,35 - 10 TPI

Blade width

3 - 12,5 mm

Cutting speed

635 m/min

Table size

300 x 300 mm

Table height

405 mm

Tilting table

0° to 45°

Dust extrcation outlet

50 mm

Motor power output S1 100%

0,30 kW (0,40 HP)

Motor power input S6 40%

0,42 kW (0,57 HP)

Voltage

230 V

Machine dimension (W x D x H)

480 x 370 x 840 mm

Weight approx.

21 kg

Properties

  • Aluminium die casting flywheels with special rubber coating for a long life span of the bandsaw blades
  • Buckling resistant, solid sheet metal construction

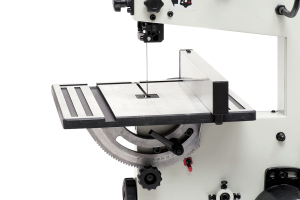

  • Working table out of aluminium with tilting device (up to 45°)
  • Serially with precision roller guide over and under the table
  • Including rip fence and both-sided tiltable mitre fence
  • Solid machine stand out of sheet metal for a safe stand at work and ingrated chip tray
  • Micro-V-belt drive for an optimal power transmission

Standard accessories

  • Bandsaw blade
  • Mitre fence
  • Ball-bedded precision blade guiding
  • LED working light
  • Push stick
