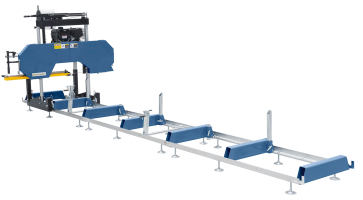

BBS 650 E (Code: 14-1304)

Hits: 416

Technical specifications

Max. log diameter

660 mm

Max. board width

520 mm

Max. bandsaw blade lift (Height adjustment)

470 mm

Min. bandsaw blade lift (Height adjustment)

45 mm

Max. cutting depth

180 mm

Cutting length basic version

5100 mm

Extension (Option)

1950 mm

Max. cutting length

unlimited

Min. cutting length

1000 mm

Feed

manual

Diameter of flywheel

480 mm

Width of flywheel

22 mm

Bandsaw blade

3650 x 34 x 1,1 mm

Bandsaw blade speed

1200 m/min

Motor power

7,5 kW (10 HP)

Voltage

400 V

Machine dimension (W x H x L – basic version)

1800 x 1700 x 6505 mm

Weight approx.

380 kg

Weight of extension

55 kg

Properties

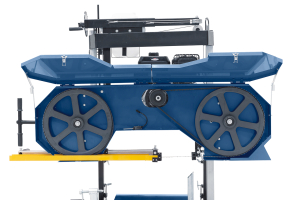

  • Dynamically balanced, grey cast drive wheels allow for a smooth run
  • Suitable for processing logs into boards, planks and beams

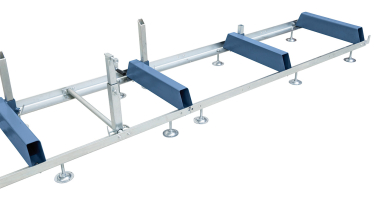

  • Bed extensions are optionally available for various cutting lengths
  • Suitable for cutting of soft as well as hard timber logs
  • Manual adjustment of feed and height of saw unit
  • Comes complete with coolant container and dosage valve for optimal lubrication and cooling of bandsaw blade
  • Adjustable fences allow for easy clamping of timber logs
  • Saw unit is fixed and guided from both sides

Standard accessories

  • Bandsaw blade HSS 3650 x 34 x 1,1 mm
  • Electric motor with star delta start-up
  • Roll conveyor for cutting length max. 5,1 m
  • Coolant tank
