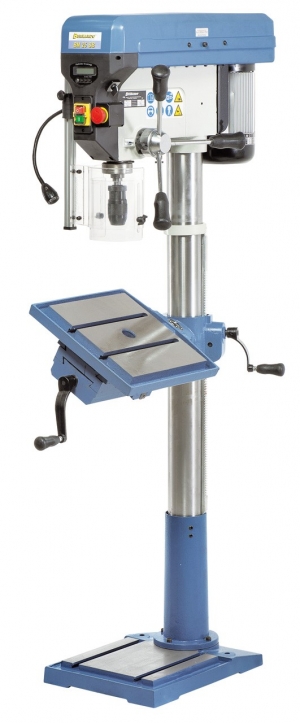

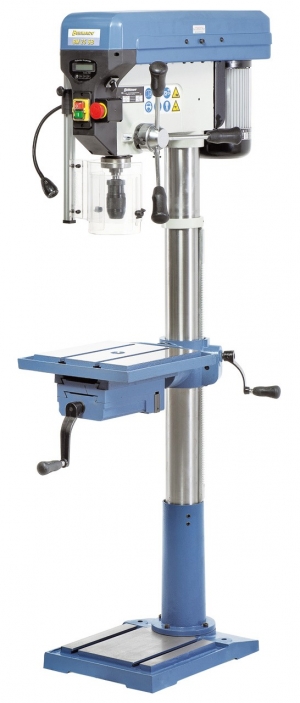

BM 25 SB (Code: 01-1122)

Hits: 612

TECHNICAL SPECIFICATIONS

Drilling capacity max.

25 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 3

Spindle speeds

(12) 150 - 2450 rpm

Distance spindle to column

220 mm

Table tiltable

360°

Distance spindle to table max.

765 mm

Distance spindle to base

1230 mm

Spindle stroke

120 mm

Column diameter

92 mm

Table size / T-slot size

300 x 300 mm / 14 mm

Working surface of base

290 x 270 mm

Motor power output S1 100%

1,1 kW / 400 V

Motor power input S6 40%

1,6 kW / 400 V

Machine dimension (W x D x H)

450 x 750 x 1680 mm

Weight approx.

110 kg

FEATURES

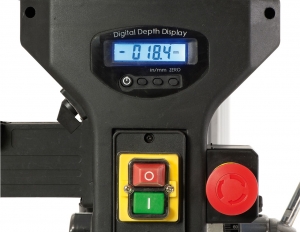

  • Digital display for spindle stroke and LED-lamp comes standard

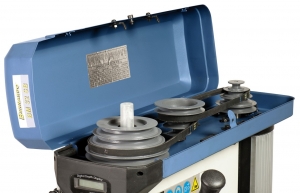

  • Grey cast iron pulleys ensure smooth operation
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots and coolant grooves

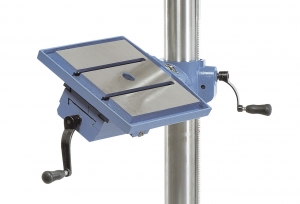

  • Drill table turns 360°, gear rack allows height adjustment
  • Switch controls right and left rotation

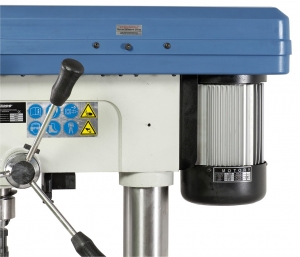

  • Powerful, high-torque aluminium motor in accordance with the IP 54 standard
  • Keyless drill chuck included
  • Comes with T-slots in polished machine base
  • User-friendly handles allow for high comfort when working



Standard accessories:

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 3 / B 18
  • Switch fot left and right turning
  • LED working light
  • Cross line laser device
  • T-slot nuts
  • Digital spindle stroke indication

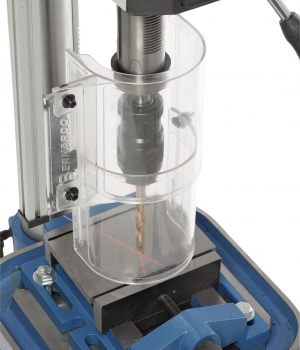

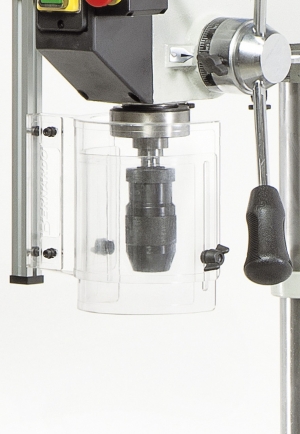

  • Height adjustable protective cover
  • Separate emergency stop switch
