HM 25 Top (Code: 14-2105)

Hits: 2214

Technical specifications

Chisel size max.

25,4 mm

Drill stroke

230 mm

Max. mortising depth

76 mm

Max. workpiece height

270 mm

Max. workpiece width

185 mm

Table size

540 x 190 mm

Tilting range work table forward / backward

22,5° / 22,5°

Tilting range spindle head

22,5° / 22,5°

Travel (x / y)

280 / 135 mm

Speed

1400 rpm

Motor power

0,75 kW (1,0 HP)

Voltage

230 V

Machine dimension (W x D x H)

570 x 650 x 1115 mm

Weight approx.

110 kg

Properties

  • For mortising of rectangular shaped holes for tenon joints etc.
  • Adjustable drill depth stop ensures repeat accuracy when mortising
  • Eccentric clamp can be adjusted quickly to secure workpiece to table
  • Includes gas pressure cylinder to support mortising
  • Ideal for slotting and mortising of hard and soft timbers

Standard accessories

  • Drill chuck 16 mm
  • 2 pcs. eccentric holder

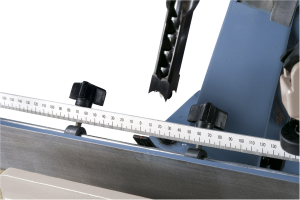

  • Longitudinal fence
  • Drill depth stop with scale
  • Quick clamping vice
  • Mortising chisel 15,87 mm
  • Gas pressure balancing cylinder

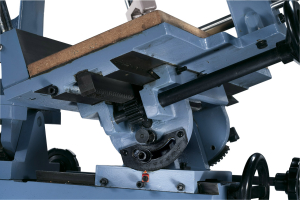

  • Tiltable coordinate table
