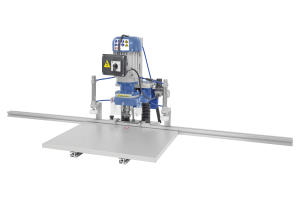

BBM 35 P (Code: 10-1016)

Hits: 1901

Technical specifications

Drill diameter

35 mm

Quantity of spindles

3 pcs.

Control

pneumatic

Workpiece clamping

pneumatic

Distance table/spindle max.

85 mm

Distance table/drill max.

50 mm

Table size

500 x 350 mm

Table moveable

105 mm

Fence length (incl. extension)

1500 mm

Necessary air pressure

6 - 8 bar

Speed

3000 rpm

Motor power

0,75 kW

Voltage

230 V

Machine dimension (W x D x H)

500 x 520 x 500 mm*

Weight approx.

25 kg

* without sidewise fence

Properties

  • Comes complete with adjustable end stop depth of hole
  • Powerful motor (0.75 kW) designed for continuous operation

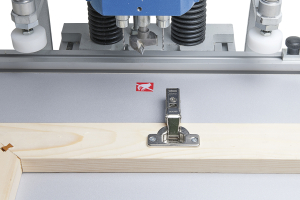

  • Excellent for drilling of hinges on furniture – Blum or Grass
  • Features an extensive range of accessories

Standard accessories

  • Hinge drill diam. 35 mm left
  • 2 pcs. drill diam. 2 mm right
  • 3-spindle drilling unit
  • Drilling unit with pneumatic feed
  • 1,5 m fence with 2 stops
  • 2 pcs. pneumatic downholder

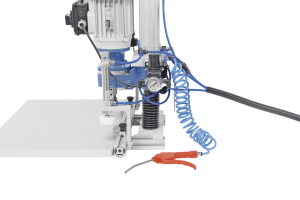

  • Air pistol
  • Foot pedal
  • Working table
