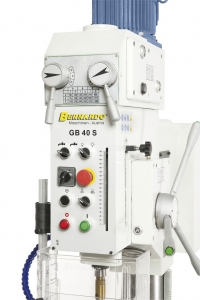

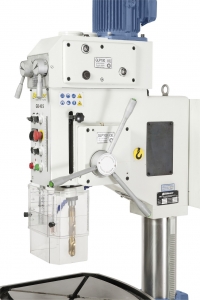

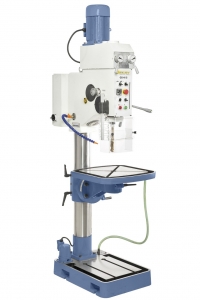

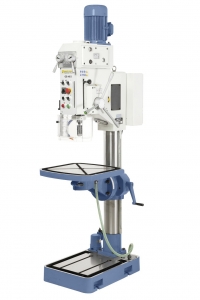

GB 40 S (Code: 01-1281XL)

Hits: 288

TECHNICAL SPECIFICATIONS

Drilling capacity max.

40 mm

Thread cutting max

M24

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds

(18) 50 - 1450 rpm

Feed range

0,1 / 0,2 mm/rev.

Distance spindle to column

345 mm

Distance spindle to table max.

695 mm

Distance spindle to base

1200 mm

Spindle stroke

180 mm

Column diameter

140 mm

Table size / T-slot size

555 x 555 mm / 18 mm

Working surface of base

505 x 540 mm

Motor power output S1 100%

0,85 kW / 1,5 kW

Motor power input S6 40%

1,1 kW / 2,2 kW

Machine dimension (W x D x H)

560 x 960 x 2250 mm

Weight approx.

505 kg

FEATURES

  • Gears operating in oil ensure smooth machine run
  • Comes complete with automatic spindle feed, tapping device and work lamp
  • Solid work table turns 360° and features diagonal T-slots and coolant groove
  • Includes integrated coolant pump in machine base
  • Lever on gear box allows for speed settings
  • Powerful motor even at continuous operation
  • Height adjustable protective cover according to CE standards guarantees high safety
  • Adjustable drill depth stop with scale
  • 18 gear steps come standard
