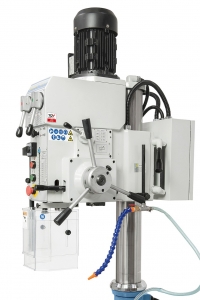

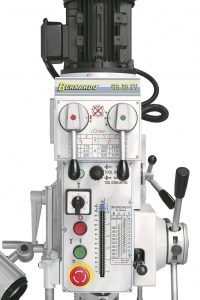

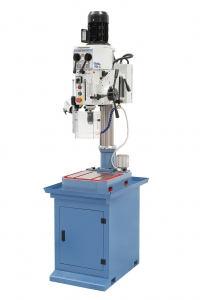

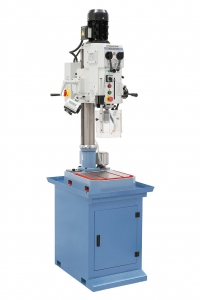

GB 30 TV (Code: 01-1252)

Hits:

2450

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

TECHNICAL SPECIFICATIONS

Drilling capacity max.	32 mm
Thread cutting max.	M20
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 3
Spindle speeds	(12) 125 - 3030 rpm
Feed range	0,10 / 0,20 / 0,30 mm/rev.
Distance spindle to column	260 mm
Distance spindle to base	700 mm
Spindle stroke	140 mm
Column diameter	110 mm
Working surface of base	340 x 335 mm
T-slot size	14 mm
Motor power output S1 100%	0,85 / 1,1 kW (400 V)
Motor power input S6 40%	1,1 / 1,5 kW (400 V)
Machine dimension (W x D x H)*	500 x 750 x 1620 mm
Weight approx.	235 kg

* without stand

FEATURES

• Precisely treated base includes T-slots and integrated coolant device
• LED working light and automatic tool release device as standard
• Hardened, polished gear wheels ensure smooth running
• Absolute concentricity ≤0,02 mm, measured at spindle
• 3 automatic spindle feeds come standard
• Switch for left and right spindle rotation
• T-slots allow clamping of workpiece
• 2-speed motor allows 12 speed settings
• Drill depth stop includes scale
• Lever on gear head for quick speed adjustment
• Powerful motor even at permanent use
