HBS 800 N (Code: 11-4033)

Hits: 462

Technical specifications

Cutting width

800 mm

Cutting height

460 mm

Blade dimension

5611 x 38 x 0,6 - 2 TPI

Blade width

19 - 50 mm

Cutting speed

1080 m/min

Table size

900 x 700 mm

Table height

1050 mm

Tilting table

-5° to +45°

Dust extraction outlet

2x 100 mm

Motor power output S1 100%

5,5 kW (7,5 HP)

Motor power input S6 40%

7,1 KW (9,7 HP)

Voltage

400 V

Machine dimension (W x D x H)

1600 x 1000 x 2480 mm

Weight approx.

524 kg

Properties

  • Dynamically balanced flywheels for smooth run
  • Cutting height adjustment via gear rack with mm-scale using a handwheel
  • Working table with grounded surface and T-slot for the mitre fence
  • Easy bandsaw blade change using the quick clamping lever on the backside.

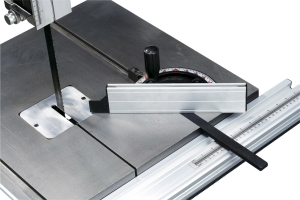

  • Precise guided aluminium rip fence, removable on each position
  • Inspection window on the front for checking the rund of the bandsaw blade

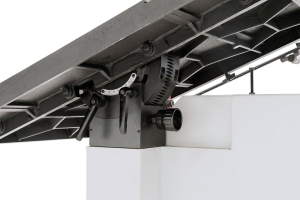

  • Generously dimensioned cast iron table, tiltable from -5° to +45°

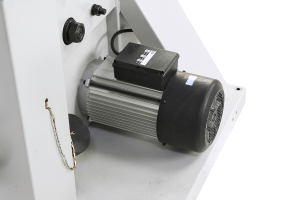

  • High-power drive motor allow handling of bigger workpieces
  • Professional wooden bandsaw – high own weight for maximum smoothness

Standard accessories

  • Bandsaw blade
  • Rip fence with loupe
  • Mitre fence
  • Cast iron flywheels
  • Precision-3-roller bandsaw blade guiding
  • Motor incl.  brake
  • Push stick
  • Tools
