HBS 320 (Code: 11-4002)

Hits: 609



Technical specifications

Cutting width

305 mm

Cutting height

170 mm

Blade dimension

2240 x 12,7 x 0,5 - 4 TPI

Blade width

6 - 20 mm

Cutting speed

370 / 800 m/min

Table size

480 x 390 mm

Table height

985 mm

Tilting table

0° to 45°

Dust extraction outlet

100 mm

Motor power output S1 100%

0,75 kW (1,0 HP)

Motor power input S6 40%

1,1 kW (1,5 HP)

Voltage

230 V

Machine dimension (W x D x H)

800 x 600 x 1600 mm

Weight approx.

52 kg

Properties

  • Serially with 2 cutting speeds, ideal for different materials and applications
  • Buckling resistant, solid sheet metal construction

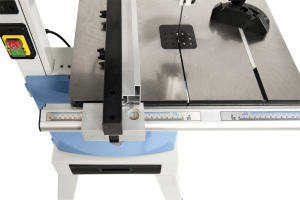

  • Working table out of aluminium with tilting device (up to 45°)
  • Serially with precision roller guide over and under the table
  • Aluminium die casting flywheels with special rubber coating for a long life span of the bandsaw blades
  • Including rip fence and both-sided tiltable mitre fence

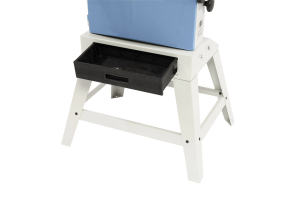

  • Solid machine stand out of sheet metal for a safe stand at work

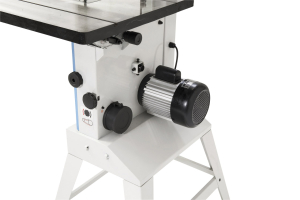

  • Poly-V-belt drive for an optimal power transmission

Standard accessories

  • Bandsaw blade
  • Rip fence with loupe
  • Mitre fence
  • Ball bedded precision bandsaw blade guiding
  • LED working light
  • Push stick
  • Stand
