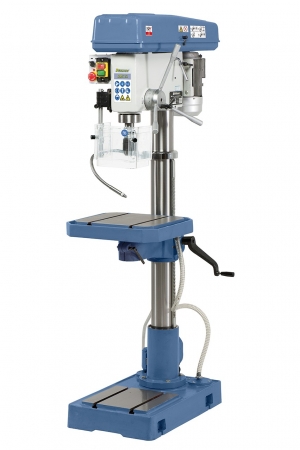

DMS 32 (Code: 01-1185)

Hits: 406

TECHNICAL SPECIFICATIONS

Drilling capacity max.

32 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 3

Spindle speeds

(9) 160 - 1880 rpm

Distance spindle to column

230 mm

Distance spindle to table max.

700 mm

Distance spindle to base

1170 mm

Spindle stroke

130 mm

Column diameter

102 mm

Table size / T-slot size

450 x 400 mm / 14 mm

Working surface of base

320 x 300 mm

Motor power output S1 100%

1,1 kW / 400 V

Motor power input S6 40%

1,6 kW / 400 V

Machine dimensions (W x D x H)

460 x 810 x 1740 mm

Weight approx.

244 kg

FEATURES

  • Surface treated work table, height adjustable via gear rack and crank

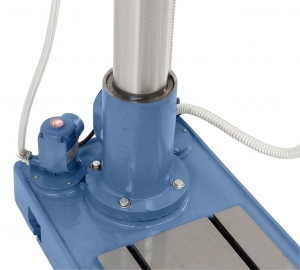

  • Polished base plate features T-slots for mounting of large workpieces

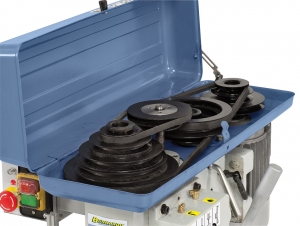

  • V-belt with balanced drive pulleys ensure smooth running
  • Adjustable drill depth stop allows accurate spindle feed
  • High concentricity ≤ 0,02 mm measured at spindle
  • Coolant device comes standard
  • Powerful motor even at continuous operation
  • Solid drilling machine for industrial use



Standard accessories:

  • Drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 3 / B 18
  • Morse taper drill sleeve MT 3 / 2
  • Coolant pump

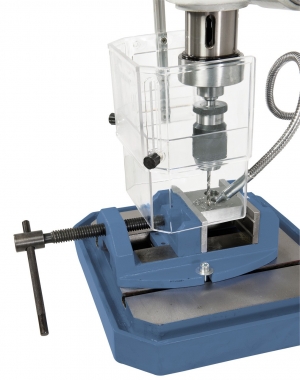

  • Height adjustable protective cover

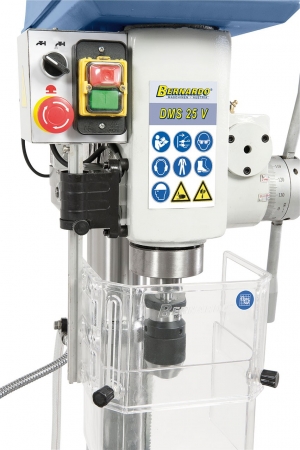

  • Separate emergency stop switch
