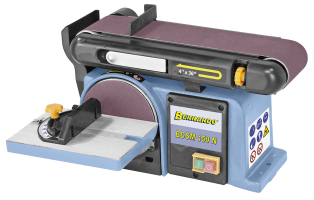

BDSM 150 N (Code: 11-4301)

Hits:

1800

Zoom image

Technical specifications

Sanding belt	915 x 100 mm
Belt sanding table	305 x 120 mm
Belt sanding table tiltable	0° to 90°
Sanding disc diam.	150 mm
Sanding disc table	225 x 155 mm
Sanding disc table tiltable	0° to 45°
Belt seped	7,5 m/sec.
Dust extractor outlet	60 mm
No load speed	2850 rpm
Motor power output S1 100%	370 W
Motor power input S6 40%	520 W
Voltage	230 V
Machine dimension (W x D x H)	460 x 400 x 300 mm
Weight approx.	19 kg

Properties

• Complete with integrated dust port to connect a dust collector unit
• Combination of belt and disc sander allows for nearly all sanding operations in your workshop to be completed
• Suitable for sanding of soft- and hardwood, as well as plastics, non-ferrous metals and alike
• Solid and torsion-free machine housing, made from grey cast-iron
• Quick clamping device allows for easy, straightforward change of sanding belt
• Continuous plane sanding surface allows for sanding of longer workpieces
• Machine is equipped with a powerful, maintenance-free induction motor
• Sanding disc and belt are part of standard equipment
• Sanding belt can be used horizontally and vertically
• Mitre fence comes standard
• Sanding table can be tilted from 0º to 45º

Standard accessories

• Sanding belt 915 x 100 mm - grit 80
• Sanding disc diam. 150 mm - grit 80
• Hook and loop fastener diam. 150 mm
• Mitre fence
• Fence at belt sanding table
• Dust extraction outlet
