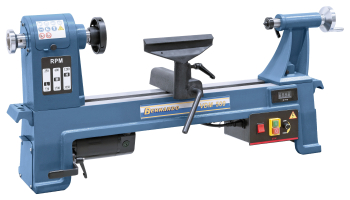

VDM 500 (Code: 10-1078)

Hits:

2237

Zoom image

Technical specifications

Distance between centers	520 mm
Working diameter
- over guideway	360 mm
- over support	260 mm
Spindle speeds	250 - 3550 rpm, stepless
Speed steps	L 250 - 720 / M 600 - 1700 /
	H 1200 - 3550 rpm
Spindle thread	M 33 x 3,5 mm
Taper of tailstock sleeve	MK 2
Travel of tailstock sleeve	70 mm
Motor power output S1 100%	0,75 kW (1,0 HP)
Motor power input S6 40%	1,1 kW (1,5 HP)
Voltage	230 V
Machine dimension (W x D x H)	1100 x 450 x 500 mm
Weight approx.	50 kg



Properties

• Quick clamping lever allows for fast clamping of tailstock to machine bed
• Machine bed, tailstock and headstock made from rigid grey cast iron to eliminate vibrations
• 24 rests assist when locking the workpiece
• Complete with steel support, easy to adjust to various workpiece diameters
• Large speed range (3 steps) from 250 - 3550 rpm
• Tailstock spindle features hole to allow processing of long workpieces
• Robust spindle, mounted with precision to ensure concentricity
• Comes complete with right and left turning device

Standard accessories

• Tool rest 200 mm
• Face plate 100 mm
• Live center MT 2
• Stepless speed adjustment
• LED speed indication
• 2x spore drive center 25 mm
• Tools
