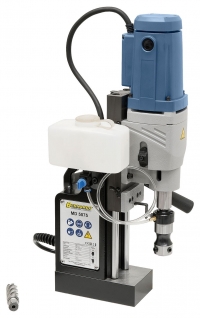

MD5075 (Code: 01-1372)

Hits: 278

TECHNICAL SPECIFICATIONS

Core drill max. Ø

50 mm

Core drill max. drill depth

70 mm

Twist drill max. Ø

16 mm

Travel of drill head max.

195 mm

Idle speed

230 / 550 rpm

Spindle taper

MT 2

Arbor weldon shank

19 mm

Distance spindle / base max.

250 mm

Distance weldon shank / base max.

140 mm

Magnetic adhesion

12800 N

Dimension magnetic base (L x W x H)

178 x 94 x 44 mm

Motor power

1550 W

Voltage

230 V

Machine dimension (W x D x H)

270 x 300 x 625 mm

Weight approx.

18 kg

FEATURES

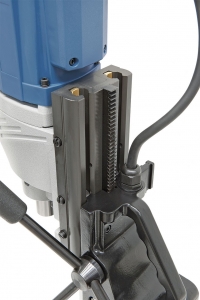

  • Stepless height adjustment of drill head – ideal when processing long drill bits
  • Compared to twist drills, machine requires significantly less feed force when using core drills
  • Powerful electro magnet guarantees best possible magnetic force
  • Including arbor with coolant feed MT 2 / Weldon 19 mm
  • 2-step gear allows ideal speed adjustment to each workpiece
  • Serially with safety chain for vertical or over head operation
  • Powerful, high-torque motor constructed for continuous operation
  • Ideal for steel construction, automobile industry and machine construction
