DR 500 S (Code: 14-2012)

Hits:

2206

Zoom image

Technical specifications

Edge thickness (PVC)	0,3 – 3,0 mm
Edge height min./max.	10 – 65 mm
Heating-up time	4 min (120°)
Working temperatur	Mode 1: 120 – 200°
	Mode 2: 80 – 155°
Glue tank	400 ml
Feed speed	2 - 6 m/min
Motor power	855 W
Voltage	230 V
Machine dimension (W x D x H)	340 x 300 x 350 mm
Weight approx.	8,5 kg

Properties

• Stepless temperature control and fast preheating allow for immediate and ease of use
• Ideal for application of adhesives onto straight or curved workpieces, whether concave or convex shapes
• Glue application adjustable by finely adjustable knob
• Ideal for processing of ABS-, PVC-, melamine and veneer edges
• Stepless adjustable feed speed directly on the handle
• Powerful drive motor ensures smooth running at every feed speed
• Ideal for mobile use, integrated battery for wireless operation

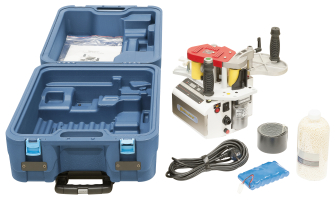

Standard accessories

• Glue granulate 0,8 kg
• Stepless feed adjustment
• Digital temperature adjustment
• Edge bending machine
• Dual end cutter KG 60 DUO
• Vacuum kit VH 03
• Edgeband trimmer KF 80
• 3x transport box
• Carriage
