T 750 - 230 V (Code: 09-1265)

Hits:

1693

Zoom image

Technical specifications

Table size	710 x 640 mm
Table size roller table (option)	500 x 480 mm
Working height	910 mm
Spindle diameter	30 mm
Tilting spindle	-5° to +30°
Height adjustment of spindle	100 mm
Working length of spindle	105 mm
Max. tool diameter	200 mm
Max. tool diameter concealed	180 mm
Table opening	200 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Motor power output S1 100%	2,8 kW (3,8 HP)
Motor power input S6 40%	3,9 kW (5,3 HP)
Voltage	230 V
Machine dimension (W x D x H)	790 x 640 x 1200 mm
Weight approx.	170 kg

Properties

• Large, grey cast-iron work table
• LED speed indicator allows for quick and easy readout
• Ergonomically positioned controls and switches guarantee high work comfort
• Powerful motor, even at continuous operation
• Solid and easily tiltable moulder unit, tiltable from -5º to +30º
• Dynamically balanced spindle ensures precise machine run

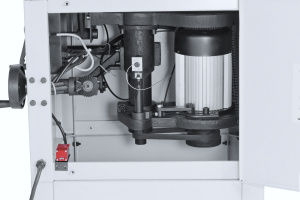

• V-belt ensures quick and easy speed change

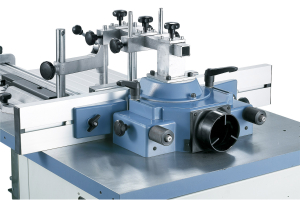

• Sturdy moulding fence with dust port of 100 mm and integral safety guides

Standard accessories

• Electronic speed indication

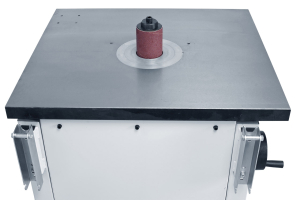

• Sanding sleeve diam. 75 mm
• Left and right turning

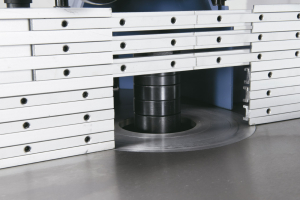

• Integral safety guides
• Protective and pressing device
