TK 250 PRO (Code: 09-1053)

Hits:

2831

Zoom image

Technical specifications

Table size	670 x 430 mm
Roller table*	400 x 250 mm
Travel of roller table*	920 mm
Max. sawblade diameter	250 x 30 mm
Max. cutting height 90° / 45°	80 / 60 mm
Cutting width on rip fence	200 mm**
Table height	355 mm
Table extension*	600 x 670 mm
Speed main sawblade	4750 rpm

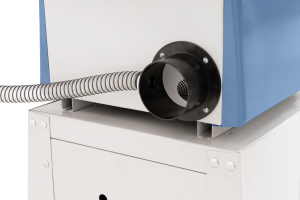

Dust extraction outlet	100 mm
Motor power output S1 100%	1,5 kW (2,0 HP)
Motor power input S6 40%	2,1 kW (2,8 HP)
Voltage	230 V
Machine dimension (W x D x H)	850 x 600 x 550 mm
Weight approx.	67 kg

* optional

** 725 mm with optional table extension

Properties

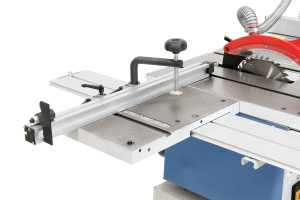

• Mitre fence either useable on right or left of sawblade, suitable for angle cuts up to 45°
• Powerful drive motor ensures constant cutting speed, even at 80 mm cutting height
• ON-OFF switch in accordance with IP 54 features undervoltage release and separate emergency stop
• Cost-effective base model, extensive range of accessories for expanded use
• Left tilting sawblade ensures better cutting guide on longitudinal fence
• Casting machine table features high accuracy and two T-slots
• Standard accessories include mitre fence and sawblade
• Including rip fence for cutting of narrow and thin workpieces

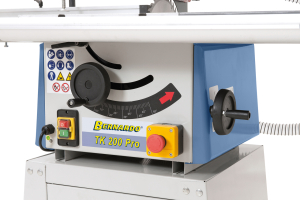

• Handwheel allows for tilting of saw unit up to 45°

Standard accessories

• Carbide sawblade 250 x 3,0 x 30 mm / 40T
• Protective cover with dust extraction outlet
• Double sided mitre fence
• Rip fence with loupe
• Separate emergency stop
• Braking motor
• Tools
