TK 200 RN (Code: 09-1041)

Hits:

2222

Zoom image

Technical specifications

Table size	530 x 400 mm
Roller table	400 x 250 mm
Travel of roller table	720 mm
Max. sawblade diameter	200 x 30 mm
Max. cutting height 90° / 45°	55 / 42 mm
Cutting width on rip fence	730 mm
Table height	890 mm
Table extension	530 x 600 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S1 100%	1,1 kW (1,5 HP)
Motor power input S6 40%	1,5 kW (2,0 HP)
Voltage	230 V
Machine dimension (W x D x H)	1520 x 1000 x 1050 mm
Weight approx.	72 kg

Properties

• Solid and easily adjustable saw unit, tilts from 90º to 45º
• Solid grey cast-iron table with T-slots for cutting with the mitre fence left and right of sawblade

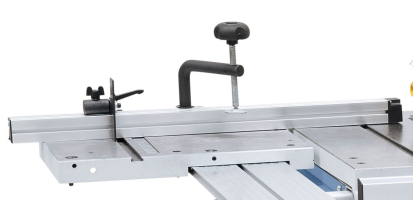

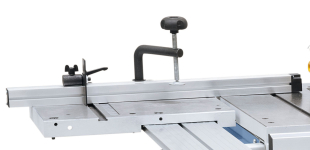

• Complete with roller table featuring aluminium fence
• Table extension for better support of larger sheets comes standard
• ON-OFF switch in accordance with IP 54 features undervoltage release and separate emergency stop
• Mitre fence for angle cuts up to 45º is part of standard equipment

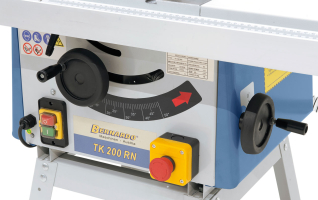

• Ergonomically arranged handwheels allow for convenient setting of cutting height and the cutting angle
• Left tilting sawblade ensures better cutting guide on longitudinal fence

Standard accessories

• Carbide sawblade 200 x 2,2 x 30 mm / 32T
• Protective cover with dust extraction outlet
• Double sided mitre fence
• Table extension
• Aluminium fence with stop
• Roller table
• Stand
• Tools
