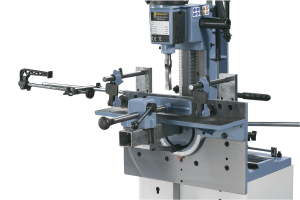

HM 30 Porta (Code: 14-2108)

Hits:

1776

Zoom image

Technical specifications

Chisel size max.	25,4 mm
Drill stroke	180 mm
Max. mortising depth	76 mm
Max. workpiece height	1150 mm
Max. workpiece width	210 mm
Table size	500 x 150 mm
Table tiltable left / right	45° / 45°
Drill head sidewise moveable	235 mm
Drill head forward / backward moveable	100 mm
Speed	1400 rpm
Motor power	1,1 kW (1,5 HP)
Voltage	400 V
Machine dimension (W x D x H)	650 (1255)* x 550 x 1820 mm
Weight approx.	190 kg

* with longitudinal fence

Properties

• Powerful drive motor, also suitable for continuous operation
• Adjustable eccentric clamp secure workpiece to table
• Ideal for mortising of rectangular shaped holes for tenon joints and more
• Optimal device for slotting and mortising of hard and soft timbers
• Adjustable drill depth stop for high repeat accuracy when mortising
• Includes gas pressure cylinder to support mortising

Standard accessories

• Drill chuck 16 mm
• 2 pcs. eccentric holder
• Longitudinal fence
• Drill depth stop with scale
• Quick clamping vice
• Mortising chisel 15,87 mm
• Gas pressure balancing cylinder
• Tiltable working table
• Closed machine base with tool shelf
