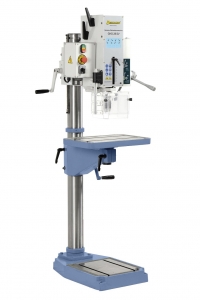

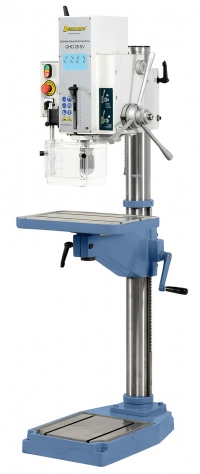

GHD 28 SV (Code: 01-1243)

Hits:

2496

TECHNICAL SPECIFICATIONS

Drilling capacity max.	28 mm
Thread cutting max.	M12
Keyless drill chuck	1 - 16 mm / B 16
Morse taper	MT 3
Spindle speeds	(8) 75 - 3010 rpm
Distance spindle to column	320 mm
Distance spindle to table max.	810 mm
Distance spindle to base	1230 mm
Spindle stroke	150 mm
Column diameter	105 mm
Working surface of base	325 x 360 mm
Table size / T-slot size	500 x 350 mm / 14 mm
Motor power output S₁ 100%	0,90 / 1,2 kW (400 V)
Motor power input S₆ 40%	1,35 / 1,7 kW (400 V)
Machine dimension (W x D x H)	600 x 700 x 1900 mm
Weight approx.	290 kg

Automatic spindle feed (0.04 – 0.03 mm/ rev) comes standard
Helical toothed gearsa allow for optimal transmission
High efficiency and smooth run through helical gears in combination steel against reinforced fiber material
Automatic spindle feed disconnects when reaching the adjusted drill depth
Switch for rotation – right or left turning – for thread cutting
Solid and polished steel column, designed for heavy workloads
Quality ball bearings guarantee high concentricity
Powerful 2-step motor offers 8 speed settings
Adjustable drill depth stop with scale in mm
