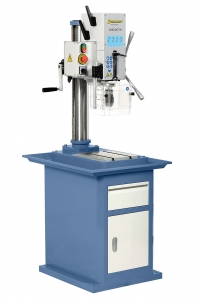

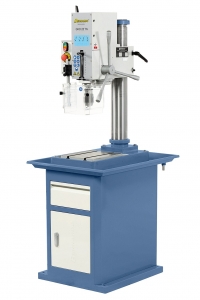

GHD 25 TN (Code: 01-1241)

Hits:

2520

TECHNICAL SPECIFICATIONS

Drilling capacity max.	25 mm
Thread cutting max.	M10
Keyless drill chuck	1 - 16 mm / B 16
Morse taper	MT 3
Spindle speed	(8) 105 - 2900 rpm
Distance spindle to column	255 mm
Distance spindle to base	535 mm
Spindle stroke	120 mm
Column diameter	100 mm
Working surface of base / T-slot size	250 x 290 mm / 14 mm
Motor power output S₁ 100%	0,65 / 1,2 kW (400 V)
Motor power input S₆ 40%	0,90 / 1,7 kW (400 V)
Machine dimension (W x D x H)*	500 x 570 x 1100 mm
Weight approx.	140 kg

* without stand

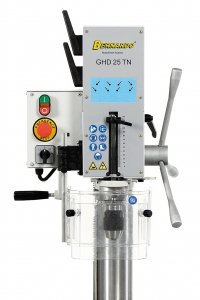

Drill head swivels 360° and can be adjusted in height
Large machine table with T-slots
Helical –teethed gearbox for optimal torque

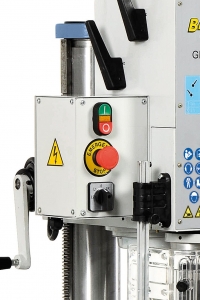

Switch for direction of rotation, right and left turning, allows for thread cutting
High-quality ball bearings ensure optimal concentricity
Solid, polished steel column, designed for heavy workloads
Helical gears in combination steel against reinforced fiber material result in high efficiency and smooth run
Powerful 2-step drive motor allows for 8 speed settings

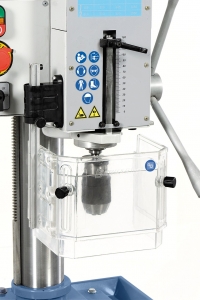

Adjustable drill depth stop with scale in mm
