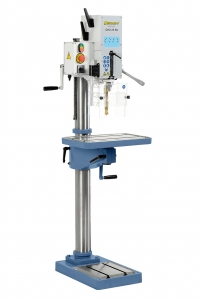

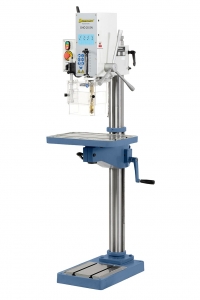

GHD 25 SN (Code: 01-1242)

Hits:

1891

TECHNICAL SPECIFICATIONS

Drilling capacity max.	25 mm
Thread cutting max.	M10
Keyless drill chuck	1 - 16 mm / B 16
Morse taper	MT 3
Spindle speeds	(8) 105 - 2900 rpm
Distance spindle to column	255 mm
Distance spindle to table max.	820 mm
Distance spindle to base	1235 mm
Spindle stroke	120 mm
Column diameter	100 mm
Table size / T-slot size	500 x 350 mm / 14 mm
Working surface of base	250 x 290 mm
Motor-Abgabeleistung S₁ 100%	0,65 / 1,2 kW (400 V)
Motor-Aufnahmeleistung S₆ 40%	0,90 / 1,7 kW (400 V)
Maschinenabmessung (B x T x H)	600 x 600 x 1800 mm
Gewicht ca.	200 kg

Helical gears in combination steel against reinforced fiber material ensures high efficiency and smooth run
Treated machine base for clamping of extraordinary oversize workpieces
Gear head and work table can be swivelled 360° and adjusted in height
High-quality ball bearings allow for high concentricity
Adjustable drill depth stop with mm-scale
Rotation switch for right and left turning for thread cutting
Helical-tooth gearbox for optimal power transmission
Solid, polished steel column, designed for high demands
Powerful 2-step drive motor allows for 8 different speed settings
