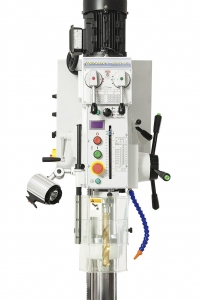

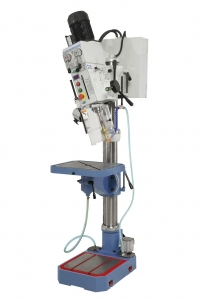

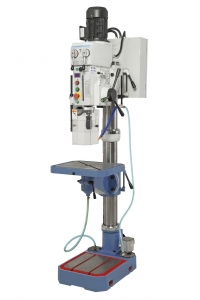

GB 32 STI (Code: 01-1275XL)

Hits:

2457

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	32 mm
Drilling capacity in cast iron	35 mm
Thread cutting max.	M20
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 4
Spindle speeds / steps	125 - 3030 rpm / 12
Feed area	0,1 / 0,2 / 0,3 mm/rev
Distance spindle to column	325 mm
Distance spindle to table max.	690 mm
Distance spindle to base	1250 mm
Spindle stroke	160 mm
Column diameter	120 mm
Table size / T-slot size	500 x 420 mm / 14 mm
Working surface of base	365 x 370 mm
Motor power output S₁ 100%	1,0 / 1,2 kW
Motor power input S₆40%	1,5 / 1,8 kW
Machine dimensions (W x D x H)	570 x 900 x 2200 mm
Weight approx.	415 kg

Tiltable drill head (-45° to +45°) increases range of applications
Tiltable work table (-45° to +45°) features diagonal T-slots and coolant grooves
Digital display allows easy readout of speed
Precision made machine base features T-slots and coolant pump
Gears running in oil bath ensure smooth run
Serially equipped with electro-magnetic spindle feed to achieve accurate results
Powerful 2-step drive motor is designed for continuous use
Hardened and polished gear wheels
