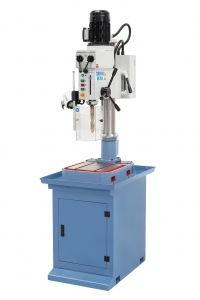

GB 30 T (Code: 01-1251)

Hits: 303

TECHNICAL SPECIFICATIONS

Drilling capacity max.

30 mm

Thread cutting max.

M 16

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 3

Spindle speeds

(6) 125 - 2825 rpm

Distance spindle to column

240 mm

Distance spindle to base

655 mm

Spindle stroke

115 mm

Column diameter

100 mm

T-slot size

14 mm

Work surface base

320 x 315 mm

Motor power output S1 100%

0,75 kW / 400 V

Motor power input S6 40%

1,1 kW / 400 V

Machine dimensions (W x D x H)*

450 x 700 x 1440 mm

Weight approx.

170 kg

* without stand

FEATURES

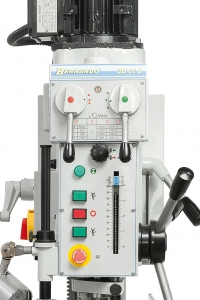

  • Lever on gear head allows easy speed adjustment
  • Adjustable drill depth stop includes scale
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • Left and right rotation allows thread cutting
  • Grey, cast-iron table includes T-slots and coolant grooves

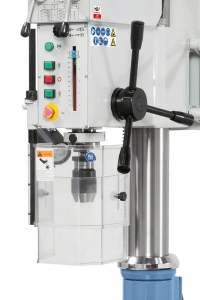

  • Automatic tool release device and LED working light come standard
  • High concentricity - spindle runs on high-quality bearings
  • Hardened, polished gear wheels ensure smooth run
  • Solid, polished steel column is designe
