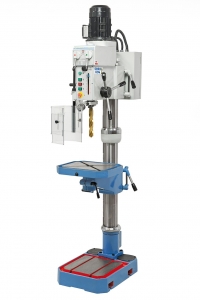

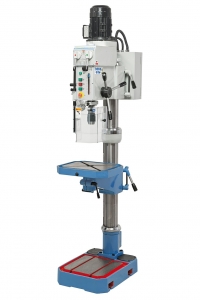

GB 30 S (Code: 01-1253)

Hits:

2409

TECHNICAL SPECIFICATIONS

Drilling capacity max.	30 mm
Thread cutting max.	M 16
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 3
Spindle speeds	125 - 2825 rpm / 6
Distance spindle to column	240 mm
Distance spindle to table max.	655 mm
Distance spindle to base	1130 mm
Spindle stroke	115 mm
Column diameter	100 mm
Table size/ T-slot size	405 x 335 mm / 14 mm
Working surface of base	320 x 315 mm
Motor power output S₁ 100%	0,75 kW / 400 V
Motor power input S₆ 40%	1,1 kW / 400 V
Machine dimensions (W x D x H)	500 x 700 x 1910 mm
Weight approx.	235 kg

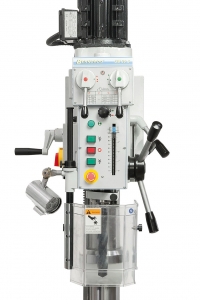

Lever on gear head allows easy speed adjustment
Adjustable drill depth stop includes scale
Absolute concentricity ≤0,02 mm, measured at spindle
Left and right rotation allows thread cutting
Grey, cast-iron table includes T-slots and coolant grooves
Automatic tool release device and LED working light come standard
Polished base plate featues T-slots features T-slots for mounting of oversized workpieces
High concentricity - spindle runs on high-quality bearings
Hardened, polished gear wheels ensure smooth run
Solid, polished steel column designed for constant use
