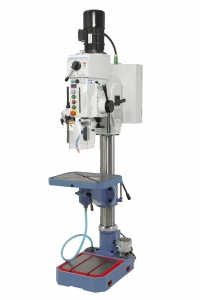

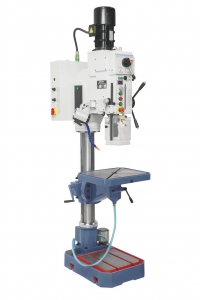

GB 35 VARIO (Code: 01-1301XL)

Hits: 270

TECHNICAL SPECIFICATIONS

Drilling capacity in steel

35 mm

Drilling capacity in cast iron

40 mm

Thread cutting max.

M24

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 4

Spindle speeds / 2 Steps

65 - 460 / 460 - 3250 rpm

Feed range

0,1 / 0,2 / 0,3 mm/rev

Distance spindle to column

320 mm

Distance spindle to table max.

580 mm

Distance spindle to base

1145 mm

Spindle stroke

160 mm

Column diameter

120 mm

Table size / T-Slot size

500 x 420 mm / 14 mm

Work surface base

365 x 370 mm

Motor power output S1 100%

1,5 kW

Motor power input S6 40%

2,2 kW

Machine dimensions (W x D x H)

600 x 870 x 2170 mm

Weight approx.

375 kg

FEATURES

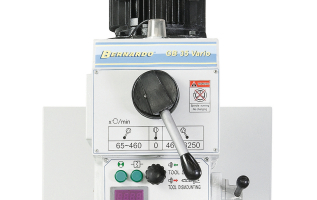

  • Stepless speed settings allows optimal adjustment of cutting speed
  • Automatic tool release device and thread cutting device come standard
  • Electromechanic drill feed, adjustable from 0,1 - 0,3 mm/rev.

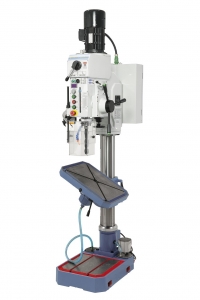

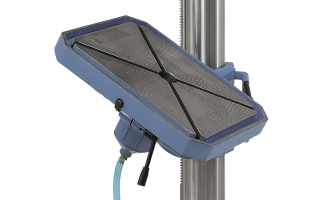

  • Solid, grey cast iron table featues a tilt- and turnable support

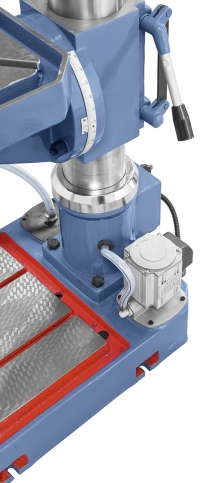

  • T-slot in machine base allow clamping of oversize workpieces
  • Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
  • Hardened, polished gear wheels allow for smooth operation
  • Adjustable drill depth stop includes scale for easy readout
