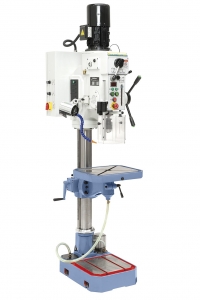

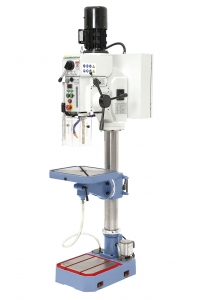

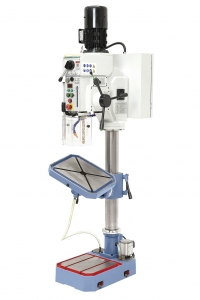

GB 30 VARIO (Code: 01-1304XL)

Hits:

2367

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

Zoom image

TECHNICAL SPECIFICATIONS

Drilling capacity in steel	32 mm
Drilling capacity in cast iron	35 mm
Thread cutting max.	M22
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 3
Spindle speeds / 2 steps	70 - 495 / 495 - 3500 rpm
Feed range	0,1 / 0,2 / 0,3 mm/rev
Distance spindle to column	280 mm
Distance spindle to table max.	650 mm
Distance spindle to base	1120 mm
Spindle stroke	125 mm
Column diameter	110 mm
Table size / T-Slot size	450 x 380 mm / 14 mm
Work surface base	340 x 330 mm
Motor power output S1 100%	1,1 kW
Motor power input S6 40%	1,5 kW
Machine dimensions (W x D x H)	500 x 800 x 2100 mm
Weight approx.	320 kg

FEATURES

• Stepless speed settings allows optimal adjustment of cutting speed
• Automatic tool release device and thread cutting device come standard
• Electromechanic drill feed, adjustable from 0,1 - 0,3 mm/rev.

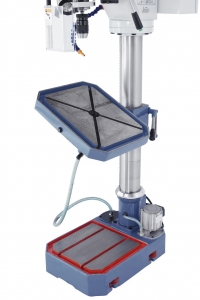

• Solid, grey cast iron table featues a tilt- and turnable support
• T-slot in machine base allow clamping of oversize workpieces
• Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
• Hardened, polished gear wheels allow for smooth operation
• Adjustable drill depth stop includes scale for easy readout
