PT 260 (Code: 08-1022)

Hits:

2567

Zoom image

Technical specifications

Planer
Planing width	260 mm
Table length	1050 mm
Table height	885 mm
Shaft rotation speed	6700 rpm
Cutter knives	2 pcs.
Planer shaft diameter	55 mm
Planer fence	610 x 110 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	480 mm
Working width	250 mm
Working thickness, min./max.	5 - 150 mm
Max. cutting depth	2 mm
Feed speed	8 m/min
Dust extraction outlet	80 mm
Motor power output S1 100%	1,6 kW (2,1 HP)
Motor power input S6 40%	2,2 kW (3,0 HP)
Voltage	230 V
Machine dimension (L x W x H)	1050 x 650 x 1050 mm
Weight approx.	75 kg

Properties

• Both planing tables feature fi ne adjustment and are designed with slots to keep noise levels down

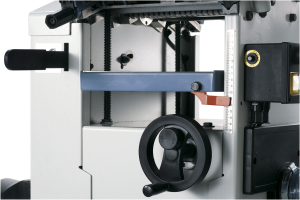

• Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
• Integrated dust extractor guarantees optimal price-performance ratio
• Quick and easy adjustment of chip removal
• Precise planing tables made of aluminium for best results
• Dust hood (Ø 80 mm) can be used for both planing and thicknessing
• Cutterblock comes with HSS-knives
• Corrugated infeed roller ensures safe and consistent workpiece infeed

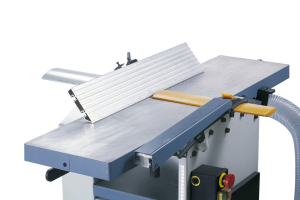

• Solid planer fence with prism guide can be tilted from 90° to 45°
• Serially equipped with knife gauge to allow accurate adjustment of knives
• Infeed can be switched off when planing

Standard accessories

• Cutter knives in HSS-quality
• Knife gauge
• Integrated dust extractor
• Waste bag
• Push handle
