PT 250 (Code: 08-1007)

Hits: 2651

Technical specifications

Planer



Planing width

255 mm

Table length

925 mm

Shaft rotation speed

8500 rpm

Cutter knives

2 pcs.

Planer shaft diameter

50 mm

Planer fence

620 x 125 mm

Fence tiltable

90° to 45°

Max. cutting depth

2 mm

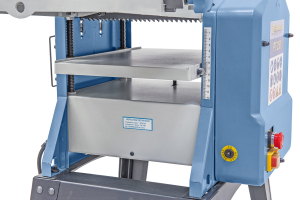

Thicknesser



Table length

380 mm

Working width

250 mm

Working thickness, min./max.

5 - 120 mm

Max. cutting depth

2 mm

Feed speed

7 m/min



Dust extraction outlet

75 mm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,8 HP)

Voltage

230 V

Machine dimension (L x W x H)

970 x 460 x 990 mm

Weight approx.

30 kg

Properties

  • Cutterblock cover in accordance with CE-standards guarantees high safety
  • On/Off switch in accordance with IP 54 features undervoltage release
  • Ideal for craftsmen and home users
  • Quick and easy setting of chip removal

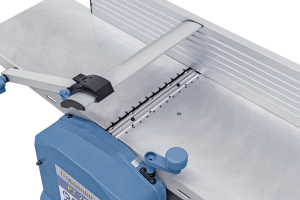

  • Precise aluminium planing tables to achieve high accuracy
  • Combined dust hood can be used for planing or thicknessing

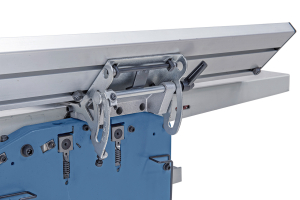

  • Solid planing fence tilts 90° to 45°
  • Precisely bedded 2-knife cutterblock with HSS cutter knives
  • Powerful drive motor for optimal planing results
  • Attractive price-benefit ratio

Standard accessories

  • Cutter knives in HSS-quality
  • Dust hood
  • Knife gauge
  • Push handle
  • Stand
