HMS 600 (Code: 11-4390)

Hits: 1896



Technical specifications

Grinding wheel

150 x 40 x 12,7 mm

Speed

2800 rpm

Max. cutter knife length

620 mm

Tilting range guide rail

20° - 90°

Table height adjustment

30 mm

Motor power output S1 100%

0,36 kW (0,50 HP)

Motor power input S6 40%

0,50 kW (0,70 HP)

Voltage

230 V

Machine dimension (W x D x H)

620 x 330 x 350 mm

Weight approx.

36 kg

Properties

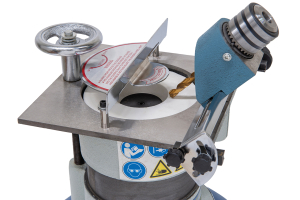

  • Suitable for grinding of cutter knives, carving knives, drill bits etc.
  • Allows simultaneous grinding of two cutter knives of 310 mm each which halves time consumption (significant difference when grinding 4-knife cutterblock)
  • Grinding wheel runs free from vibrations for optimal grinding results

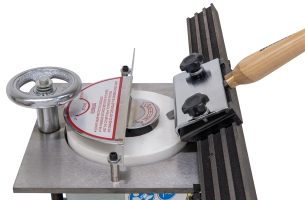

  • Precise cutter knife holder made from solid grey cast-iron
  • Tiltable guide rail from 20° to 90°
  • Handwheel on front of machine allows for adjustment of grinding angle

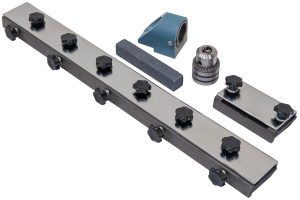

Standard accessories

  • Grinding wheel
  • Knife lock plate
  • Tool clamp 12 cm
  • Drill chuck with turnable bushing
  • Dressing stone
