T 800 F - 230 V (Code: 09-1279)

Hits:

2143

Table size	1000 x 360 mm
Table size sliding table	1000 x 240 mm
Size square table (optional)	600 x 410 mm
Working height	895 mm
Spindle diameter	30 mm
Tilting spindle	-5° to +45°
Height adjustment of spindle	100 mm
Working length of spindle	100 mm
Max. tool diameter	200 mm
Max. tool diameter concealed	180 mm
Table opening	200 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Voltage	230 V
Machine dimensions (W x D x H)	1240 x 710 x 1200 mm
Weight approx.	218 kg

Smooth sliding table allows for easier processing of oversize workpieces
Solid moulding fence features fi nely adjustable aluminium fence rails

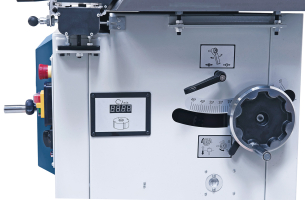

Quick and easy readout of spindle speed on digital display
Mitre fence with eccentric holder is part of standard equipment
Dynamically balanced moulder spindle ensures for precise run
V-belt allows for fast and convenient speed change
Solid square table for processing of oversize workpieces without needing extra support (optional extra)
All alluminium parts (sliding table, fences etc.) are anodized
Large, grey cast-iron moulder unit, tilts from +5º to -45º
Moulder spindle tilts to the back which results in the following advantages: optimal use of power feeder, high safety standards and immaculate finish
